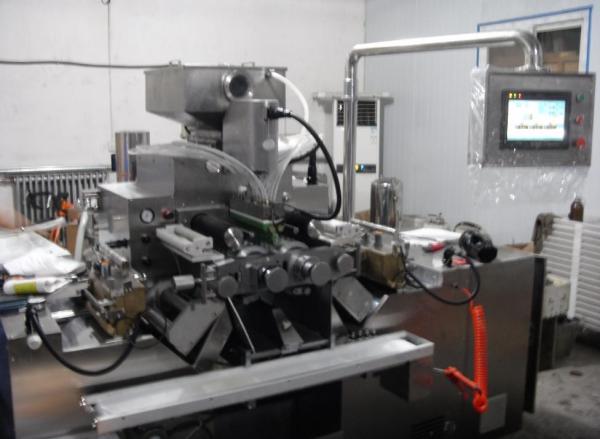

20kw Automatic Paintball Encapsulation Machine With Gelatin Ribbon Lubrication
Quick Detail
| Product Name | Large scale paintball making machine | Driven Type | Electric |
| Capacity | 32000pcs /hour | shape | round |
| Application | Food, pharmaceutical, paintballl making machine | Control | PLC |
Product Description
S610PB Paintball making machine is suitable for large scale paintball production. The machine adopts independent lubrication single adjustable lubrication, saving production cost for customers,
Specifically speaking, it has the following characteristics:
Dosage deviation:<+1.5%
Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
Major bearing made in Germany.
Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
Automatic medicine supply. The system can even alarm when the fill material tank is empty.
High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.
Specification
| Model | S610PB |
| Die roll size | 150×250mm |
| Die roll speed | 0~5rpm |
| Max plunging volume per stroke | 0~2ml |
| Plunger numbers | 20/24 |
| Overall dimension | 2050×1200×1850 |
| Weight of main machine | 1900kg |
| Power consumption | 20 kw |
| Control mode | PLC+Touch Screen |
| output | 32000 pcs/hour |
Competitive Advantages
1. Improve the efficiency of production largely
2. Compact and beautiful
3. Reduce the oil consumption
4. Save money for users
5. Low noise, run more smoothly
6. PLC+touch screen
Fully Automatic paintball making machine, Paintball Encapsulation Machine
